Single-Use Bioreactor 50–2000 L BIOBGBR　バイオリアクター

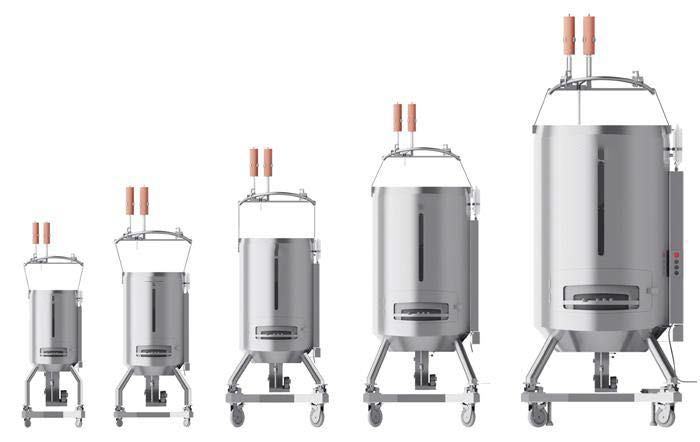

BIOBGBR Single-Use Bioreactor comes standard with working volumes of 50 L, 200 L, 500 L,
1000 L, and 2000 L. Including a vessel, a controller and a temperature control unit (TCU), it is used for culturing mammalian cells, insect cells, and other low shear-rate needed cells.

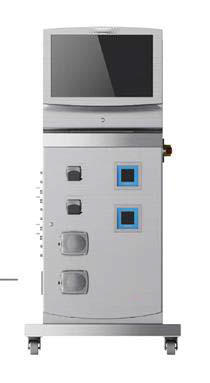

BIOBGBR Controller — The Controller of Single-Use Bioreactor
BIOBGBR controller consists of control hardware and underlying hardware modules. BIOBGBR's controller is built with SIEMENS PCS 7 which meets the automation requirements from research to pro-duction, as well as from single system to enterprise-wide solution. The software fits ISA 88 control stan-dard and 21 CFR Part 11.
Hardware control units are all built with international famous brands to ensure robust and reliable performance. Also, a choice of PAT tools can be configured flexibly to meet different customer needs and applications. One BIOBGBR controller can control different types of single-use bioreactor vessels at the same time. We can also use BR controller as an integrated control center to realize upstream centralized control by controlling several single-use bioreactor vessels simultaneously.

BIOBGBR Vessel — The Vessel of Single-Use Bioreactor BIOBGBR Vessel operates with bottom-drive agitators. It has a patented sparge design that supports flexible combinations of micro, medium and macro sparge sizes, helping to optimize the culture pro-cess, enhance the cell density, and maintain cell viability. For the operation of BIOBGBR, two types (air-cooled and water-cooled) of temperature control units (TCU) are available to meet customers' specific needs in different applications.

Features of BIOBGBR Single-Use Bioreactor

• A single controller supports the control of multiple vessels by plugging and unplugging, which contributes to significant cost
reduction;
• Reliable PCS 7 system and meets ISA 88, applicable for whole-plant control;
• The software is designed with user-friendly interface in compliance with 21 CFR Part 11;
• Flexible configurations, partly customizable upon customer requirements;
• The main parts are all high-end brands and passed the inspection before leaving the factory to ensure normal operation;
• The sparge provides micro, medium, and macro sparge size options to meet various pro-cessing needs;
• Complete FAT, SAT, and IQOQ documents/services are available;
• Rich application and operation support, and high-speed response speed.
